Lidar Sensor Industrial Grade Security Scanner
Lidar Sensor Industrial Grade Security Scanner

Lidar Sensor Industrial Grade Security Scanner

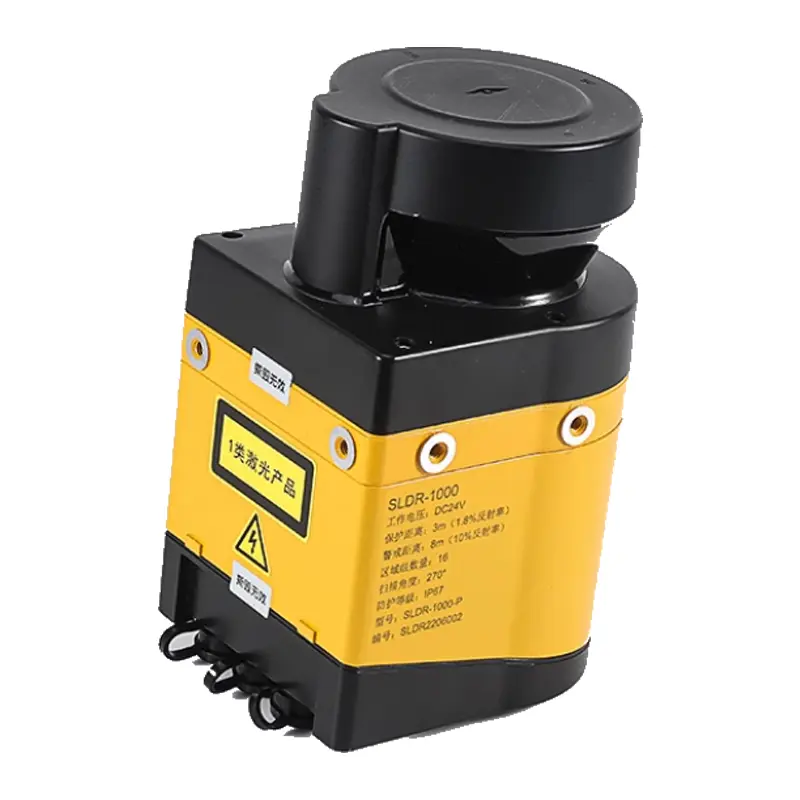

Lidar sensor machine SLDR-1000 obstacle avoidance single-line induction industrial-grade security scanner. It complies with the human eye safety protection level 1, and the laser meets the national mandatory requirement IEC60825-1 certification, making it safer to use. The reliable sealing design makes the product waterproof level reach IP67. The high protection level of waterproof and dustproof makes the body safer.

    Contact us
    product details

    description2

    Details

    Cold-resistant and heat-resistant precise temperature control design: The scanner has built-in temperature control settings to accurately control the working temperature. The working temperature range is -10°C~+50°C.

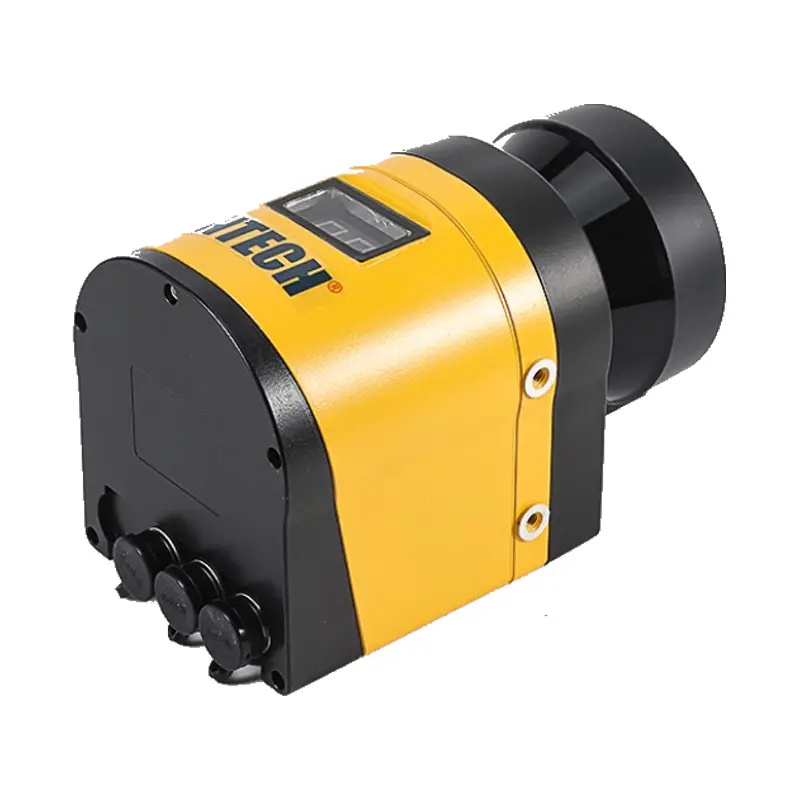

    Dust cap: The dust cap at the interface can effectively prevent dust from entering and increase safety.

    Thick connecting cable: The connecting cable is thickened, resistant to bending, not easy to oxidize, and durable.

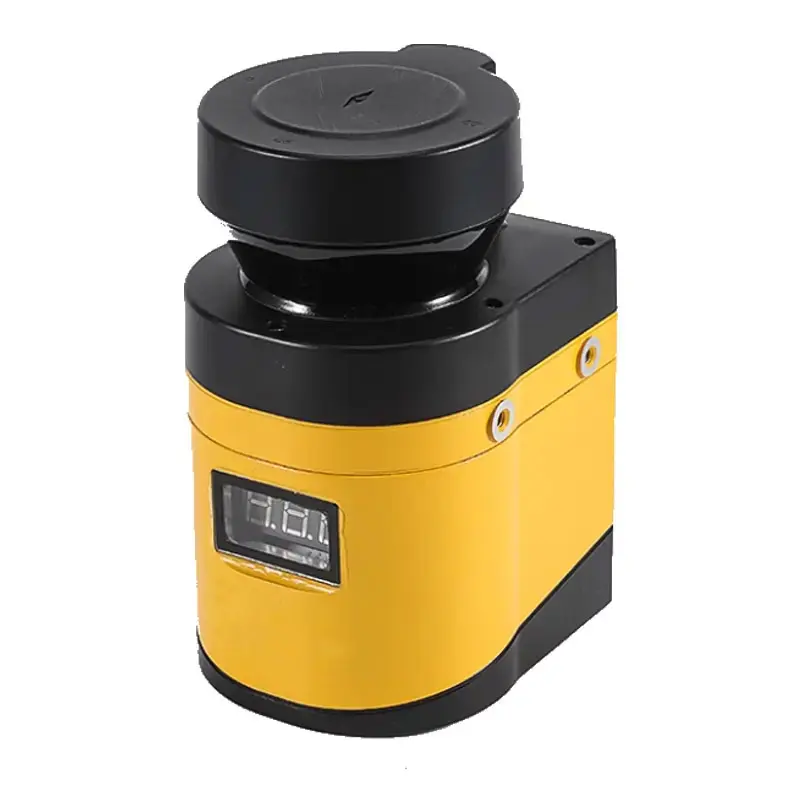

    Digital display: effectively displays working status in a simple and clear way

    Rugged shell: Aluminum alloy shell is sturdy, durable, shock-resistant and drop-resistant

    Scanner Parameters

    Small stature-big use -no space
    f0af

    Security area scope

    3M

    Effective distance of
    alarm area

    8M (when reflectivity is
     10%)

    Ranging range

    20M

    measurement accuracy

    ±3CM

    scanning frequency

    50HZ

    Anti-light interference

    80KLUX

    Zone group type

    two districts

    Number of zone groups

    16

    Scan angle

    270°

    resolution

    40MM.50MM.70MM

    Angular resolution

    0.5°

    Response time

    80MS,100MS,140MS,180MS,220MS

    Auto reset delay

    0S...60S, adjustable

    Laser safety level

    Class 1 Laser Eye Safety

    Laser wavelength

    905MM

    Restart interlock

    support

    External device monitoring

    support

    Measurement data output

    support

    Configuration and diagnostic interface

    RS-232

    Transmission rate

    38.4kBaud

    Supply voltage

    24V DC(16V DC..30V DC)

    Power consumption

    5W at no load, 25W at maximum load

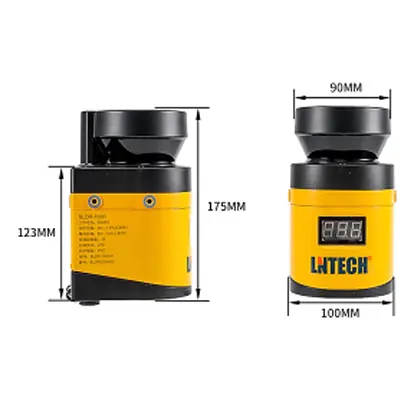

    Housing size

    175MMX115MMx100MM

    weight

    1.25KG

    Shell material

    Aluminum alloy

    Shell color

    RAL1003

    Protection level

    IP67

    Working temperature

    -10°C..+50°C

    Storage temperature range

    -25°C ...+50°C

    Anti-vibration

    10HZ~150HZ

    Impact resistance

    Continuous impact 100M/S2, 16MS

    Product standard

    F0049
